Gas sensor

     The sensor is used to detect and prevent gas leakage hazards. It is equipped with a high quality gas sensor with high sensitivity and when the gas density in the air exceeds the allowable level, it generates an alarm through a red flashing LED light and the integrated siren.


Gas sensor

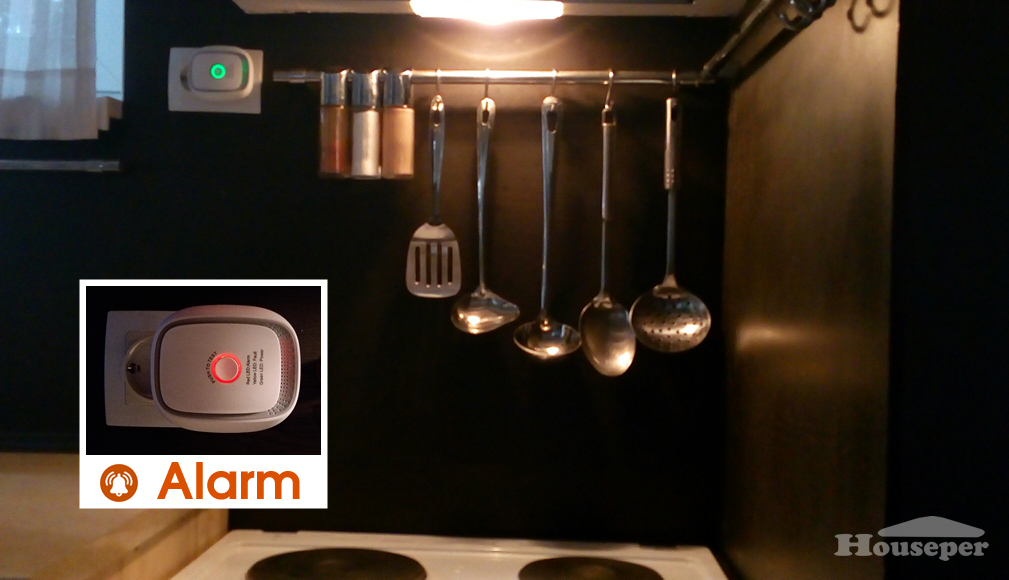

    The unit plugs directly into the socket and easily connects to the Houseper system. When it is activate and a gas leak is detected, an alarm indicator will be displayed Alarm and depending on your settings, it can send an instant notification to smart phone, emails, and trigger a Siren device. It is a part of the group of home security devices and as such it can have different types of alarms, such as:

    Missing device - a missing device when the connection to the device is lost.

    Trouble - trouble, indicates device malfunction.


Functionality:

  • Basic
  • Identify
  • Zone

Alarm indication:

  • red LED flash
  • build-in "beep" sound alarm
  • siren activation from HOUSEPER system
  • smart phone notification from HOUSEPER system
  • mail from HOUSEPER system

Join network:

  1. insert  the gas detector into socket. Buzzer will "beep" once and green LED blink once
  2. yellow, red and green LEDs start repetitively flashing for 3 minutes, finishing with permanent green light;
  3. press "Add device" button under the Settings tab in HOUSEPER application;
  4. keep pressing the device button located in the little hole for 2 seconds till green LED start flashing quickly;
  5. green LED stops flash and starts lighting permanently after successful join;
  6. device appears on Devices tab in HOUSEPER application.

Leave network:

  1. press the device button located in the little hole for 5 seconds to leave the network;
  2. after the device leaves HOUSEPER network, the green light flashes slowly for 3 seconds.


Device Specifications
Networking type Zigbee HA 1.2
Wireless Networking Distance 100m (open area)
Router (network extender) Yes
Endpoints 1 x Gas sensor
Working temperature -10℃ ~ +50℃
Working humidity ≤95%RH
Sound level 75dB/1m
Alarm density 6%LEL±3%LEL
Power Supply Specifications
Power Supply AC 100~240V

Write a review

Please login or register to review

Gas sensor

  • Product Code: GTVE-GD-ZBGD18T2
  • Availability: In Stock
  • 78.08лв.

  • Ex Tax: 65.07лв.
